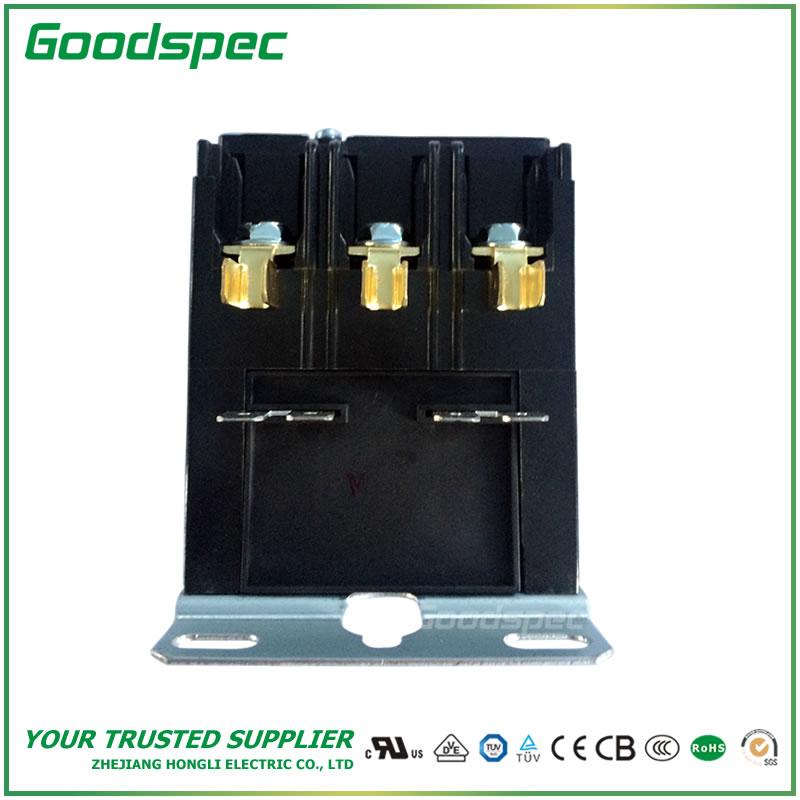

HLC-3XV02CY(3P/30A/277VAC)DEFINITE PURPOSE CONTACTOR

$19.00

SKU: 47 Category: Tag:

Applicable and Description

1. Applicable Scope
HLC-3XV02CY(3P/30A/277VAC)Definite Purpose Contactor (DP Contactor),Mainly Is Suitable For 50Hz Or 60Hz, When The AC-8a Use Category Fixed Working Voltage Is 277V Or 600V The Nominal Current Up To The 30A Electric Circuit, Is Suitable For The Starting And The Control Three-Phase Motor (Or Compressor) And Other Three-Phase Loads.Mainly Uses In The Domestic Electric Appliances Profession, Specially In Air Conditioning Profession,Conforms To IEC60947, UL508 and GB14048standard.
2. Type and Meaning
HL C 3X V 02 CY
Company Code Contactor Packing
Y : Individual Box Pack
– : Factory Bulk Pack
3 Pole Coil Voltage
277VAC
Rating of current #10-32 Combo screw with dual QC
Product Explanation And Main Technical Parameter
Type HLC-3XV02CY(3P/30A/277VAC)Definite Purpose Contactor
Rating Current Ie: 30A
Rating Voltage Ue: 240/277V
Insulation Voltage Ui: 660V
Coil Voltage Us: 277V
Mechanical Life 1000,000 Cycle
Electrical life 100,000 Cycle
Product Explanation

1.Product Description

HLC-3XV02CY is Suitable To Exchanges 50 Or 60hz, Fixed Working Voltage To 600v, Fixed Operating Current To 20A Three-Phase Load Circuit Control,At Present, Widely Applies To The Three-Phase Mechanical Device Main Circuit As Well As The Three-Phase Air-Conditioner Compressor Control.

2 .The Regular Service Conditon And Installs The Condition
a. In The Surrounding Air Temperature The Limiting Value Is +65 , Gets
Down The Limiting Value Is -25
b. The Installation Site Elevation Does Not Surpass 2000m
c. The Air Pollution Rank Is 2 Levels
d. Installs The Category Is Ii ;
e. Installment Facing The Gradient Does Not Surpass ±5°
f. Not Remarkable Undulation, Impact And Vibration Place.

3 .Main Technical Parameter
a. Contactor Coil Picking Up In 75% ~ 110% Us Reliably
Working, Its Drop Out Voltage In 20% ~ 70%Us
b. Contactor Use Category: Ac-1Ac8a
c. Contactor In With 0.4m Place, Its Noise Below 40db.

4 . Installing Specification And Install Size

a. Installs The Way To Be Fixed For The Screw, Some Two Kinds Install The Size To Choose One Kind Of Size Fitting Surface And The Horizontal Plane Are The Vertical Shape Gradient Are Not Bigger Than ±5°

b. Before The Use Should Inspect The Power Terminal And The Contactor
Quick Connect Whether Inserts Arrives, Is Reliable, Avoids Creating
The Breakdown, Behind Check Off May Electrify Tries .


Conforms To The Standard
Conforms To International Standard 1 、Conforms To UL508, IEC60947, GB14048 Standard。
2 、Approved By UL,CUL,TUV,CE,CCC and ISO9001 System Certification(SGS)。
UL Files Number:   E251539
CCC Files Number: 2005010309156761
Ordering Request
To Guarantee You Purchase Right, Please Read The Specify Type Before Order.
Contactor Specification Model, Pole Number, Coil Control Voltage, Rating Of Operating Current, Wiring Way(Terminal), Whether With Cover ,The Packing Way, Etc
If You Request As Follows: Nominal Current: 30A, Working Voltage: 240/277V,480V,600V, Pole Number: Three Pole Without Shunt, Coil Control Voltage:120V, Wiring Way: Quick Connect, Load Current: Three-Phase Motor Controls Or Heating Load, Packing: 25/Each Box (Factory Packing), With The Cover. Then You May Be Elect The Type : HLC-3XV02CY
Lifts The Samples As Follows (Contains Derivation Type From This Model)

Rating Current
(Ie)
Pole Rating of Coil Control Voltage Control Motor Power
24VAC 120VAC 208/240VAC 277VAC 400VAC 240VAC
30A 3P HLC-3XQ02CY HLC-3XT02CY HLC-3XU02CY HHLC-3XV02CY HLC-3XH02CY 7.5Kw
Weight 0.5 kg
